Ultrasonic Cleaning, Rinsing, and Drying System for Cellular Manufacturing: Tabletop Version

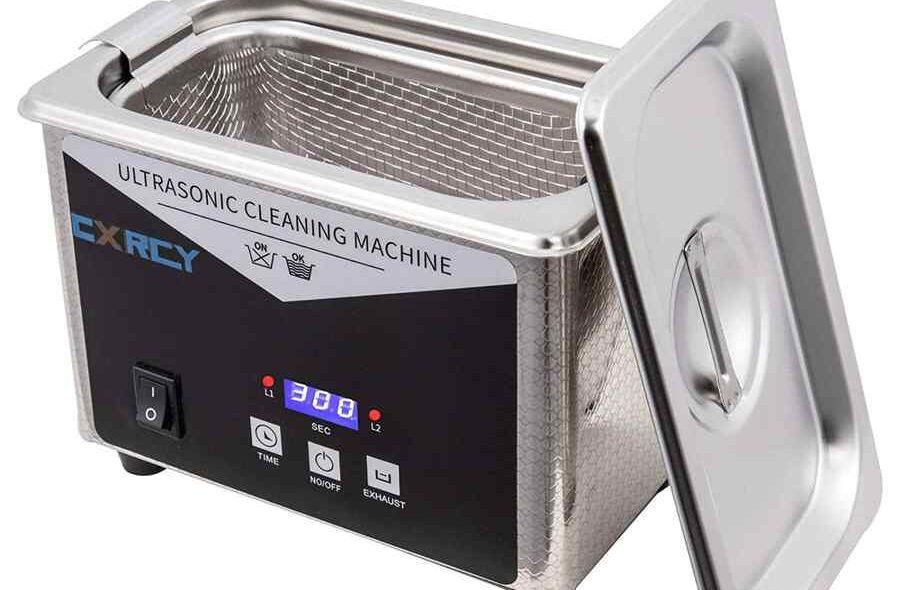

Ultrasonic-Cleaning

In today’s fast-paced and precision-driven manufacturing environments, maintaining high standards of cleanliness for components is essential. Ultrasonic cleaning, rinsing, and drying systems have become a critical part of the process, particularly in cellular manufacturing, where small parts and intricate assemblies demand thorough cleaning. The tabletop version of these systems offers a compact, efficient, and versatile solution tailored to the needs of manufacturers with limited space but high cleanliness requirements. Lemari asam explores the ultrasonic cleaning, rinsing, and drying system for cellular manufacturing, highlighting its importance, working principles, benefits, and the unique features of the tabletop version.

Understanding Ultrasonic Cleaning in Cellular Manufacturing

Ultrasonic cleaning employs high-frequency acoustic vibrations (usually ranging from 20 kHz to 400 kHz) to energize cleaning liquids such as water or solvents, generating tiny bubbles within the solution. These bubbles expand and collapse rapidly, generating powerful forces that remove contaminants from surfaces. This method is especially effective for cleaning complex or delicate components in cellular manufacturing, which often involve intricate geometries or small parts that are challenging to clean using traditional methods.

In cellular manufacturing, where parts are produced in batches within dedicated work cells, the need for precision cleaning is heightened. Parts such as circuit boards, small mechanical components, medical devices, and electronic assemblies must be free of oils, dust, flux, and other contaminants to ensure quality and functionality. Ultrasonic cleaning provides a non-invasive, effective solution for these delicate parts, ensuring that they are cleaned thoroughly without risking damage.

The Process: Cleaning, Rinsing, and Drying

1. Ultrasonic Cleaning:

The first stage of the cleaning process involves immersing the parts in a cleaning solution within the ultrasonic tank. The system generates ultrasonic waves that cause the solution to form microscopic bubbles, which implode on the surfaces of the parts. This creates a scrubbing action, lifting away contaminants without the need for abrasive contact. The ultrasonic waves penetrate even the smallest crevices, making this process especially effective for cleaning complex parts in cellular manufacturing.

2. Rinsing:

After ultrasonic cleaning, it is crucial to rinse the components thoroughly to remove any residual cleaning solution or contaminants that may remain on the parts. Rinsing ensures that no cleaning agents are left on the components, which could interfere with their functionality or compromise the final product’s quality. Typically, a series of rinsing steps, involving deionized water or other specialized solutions, is used to ensure that the components are thoroughly cleaned.

3. Drying:

After the rinsing process, the components must be dried to prevent water spots or corrosion. The drying process is typically achieved using air blowers, heated drying chambers, or vacuum drying systems. In some advanced ultrasonic cleaning systems, the drying step can also be incorporated into the same unit, making the entire process more efficient. The drying system ensures that all parts are fully dried before they are sent for further processing or assembly.

The Tabletop Version: Compact and Efficient

The tabletop version of ultrasonic cleaning, rinsing, and drying systems is designed to meet the needs of manufacturers who require high-performance cleaning solutions but have limited space. Unlike larger industrial systems, which may require dedicated floor space and complex setups, the tabletop systems are compact and can be conveniently placed on a workbench or table. Despite their smaller size, these systems maintain the high cleaning standards expected from ultrasonic technology, making them ideal for small to medium-sized batches.

Key Features of Tabletop Ultrasonic Cleaning Systems:

1. Space Efficiency:

Tabletop ultrasonic cleaning systems are designed to maximize the use of limited workspace. Their compact size makes them perfect for smaller workshops or labs where space is at a premium.

2. High-Precision Cleaning:

Just like their larger counterparts, tabletop ultrasonic cleaners provide precise cleaning for delicate components. With adjustable frequency and power settings, users can customize the cleaning process to suit the specific needs of their parts.

3. User-Friendly Operation:

Tabletop versions often come with intuitive controls, allowing operators to easily adjust the cleaning time, temperature, and other parameters. Many models also feature programmable settings to streamline the cleaning process for different types of parts.

4. Efficient Rinsing and Drying:

Some tabletop systems are equipped with built-in rinsing and drying modules, which reduces the need for additional equipment. This combined method streamlines the cleaning process and improves overall productivity.

5. Cost-Effective:

The tabletop ultrasonic cleaning system is typically more affordable than larger industrial systems, making it a cost-effective solution for small and medium-sized manufacturers who require high-quality cleaning without the high upfront investment.

Benefits of Ultrasonic Cleaning in Cellular Manufacturing

The integration of ultrasonic cleaning, rinsing, and drying systems into cellular manufacturing offers several advantages:

1. Improved Product Quality:

Ultrasonic cleaning ensures that components are thoroughly cleaned, which improves the quality and reliability of the final product. By removing contaminants like oils, dust, and flux residues, manufacturers can prevent defects and ensure better performance of their components.

2. Reduced Downtime and Labor Costs:

The automation of the cleaning, rinsing, and drying process reduces the need for manual cleaning efforts, saving time and labor costs. Additionally, the fast cleaning cycles offered by ultrasonic systems reduce downtime, helping manufacturers meet tight production schedules.

3. Environmental Benefits:

Ultrasonic cleaning uses minimal amounts of cleaning solution and water, making it more environmentally friendly than traditional cleaning methods that rely on harsh chemicals and large volumes of water. Many modern ultrasonic systems are designed to be energy-efficient, further enhancing their environmental credentials.

4. Enhanced Precision:

The high-frequency sound waves used in ultrasonic cleaning allow for deep penetration into even the smallest cracks and crevices, ensuring that parts are cleaned to the highest standards. This precision is particularly important in industries like electronics and medical device manufacturing, where cleanliness is crucial.

Conclusion

The tabletop ultrasonic cleaning, rinsing, and drying system for cellular manufacturing is a powerful solution for manufacturers seeking high-precision cleaning in a compact, cost-effective format. By utilizing ultrasonic technology, these systems offer efficient and thorough cleaning while saving valuable space and reducing operational costs. As the demand for cleaner, more precise components continues to rise, the tabletop version of ultrasonic cleaning systems provides an indispensable tool for small and medium-sized manufacturers striving to maintain quality and productivity in their operations.
