When designing precision motion control systems, selecting the right rotary encoder can make or break your application’s performance. The choice between absolute and incremental rotary encoders isn’t just a technical decision—it’s a strategic one that impacts everything from system reliability to total cost of ownership.
Understanding the fundamental differences between these two technologies is crucial for engineers, system integrators, and business decision-makers who need to optimize their motion control investments.
Understanding the Core Technologies
Rotary encoders serve as the eyes of motion control systems, translating mechanical rotation into electrical signals that controllers can interpret. However, the way they communicate position information differs dramatically between absolute and incremental designs.
Incremental encoders generate pulses as the shaft rotates, with each pulse representing a fixed angular increment. Think of them as digital odometers—they tell you how far you’ve traveled from a starting point, but they need a reference position to establish where “zero” is located. These systems typically output two channels (A and B) in quadrature, plus an index pulse that occurs once per revolution.

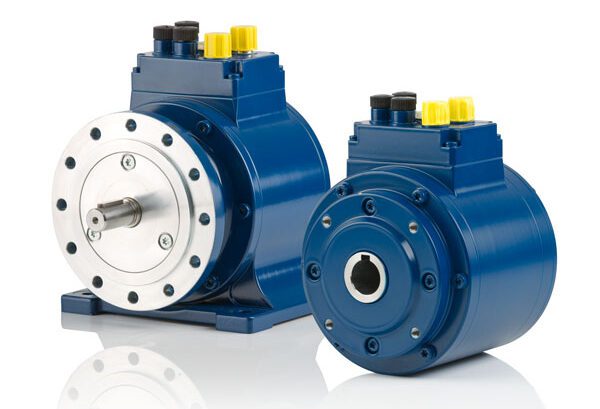

Absolute encoders, on the other hand, assign a unique digital code to every position within their range. Like having a GPS coordinate for every location, they always know exactly where they are without needing to count steps from a reference point. This position data is available immediately upon power-up, making them inherently more robust against power interruptions.
Performance Characteristics That Matter
The operational differences between these technologies create distinct performance profiles that suit different applications.
Startup Behavior and System Initialization
One of the most significant advantages of absolute encoders is their immediate position awareness. Absolute encoders are uniquely able to begin operation immediately when a system is powered up, eliminating the time-consuming homing sequences that incremental systems require. This characteristic becomes critical in applications where downtime costs are high or where safety considerations prevent lengthy initialization procedures.
Incremental encoders must perform a homing routine after every power cycle, seeking a known reference position before normal operation can begin. While this process typically takes only seconds, it can be problematic in applications requiring instant readiness or where mechanical homing isn’t feasible.
Resolution and Accuracy Considerations
Both encoder types can achieve exceptional resolution, but they approach it differently. Absolute encoders with 8-bit resolution (1024) will report 1024 unique shaft position values with each rotation, with modern units reaching 25-bit resolution (over 33 million positions per turn). However, incremental encoders can achieve virtually unlimited resolution through electronic interpolation, making them ideal for applications requiring extremely fine position feedback.
The key difference lies in error propagation. Incremental encoders can accumulate counting errors over time, especially in electrically noisy environments, while absolute encoders provide fresh, accurate position data with every reading.
Speed and Dynamic Response
Incremental encoders provide essentially instantaneous position information with minimal latency, making them excellent for high-speed applications and real-time control loops. Their simpler data structure allows for faster communication cycles, which is crucial in servo systems requiring rapid response times.
Absolute encoders, while improving rapidly, still require more time to transmit their complex position data, especially multi-turn units that track multiple shaft revolutions. However, for most industrial applications, this difference is negligible compared to other system delays.
Cost Analysis and Economic Factors
The economic equation between absolute and incremental encoders has evolved significantly in recent years. Incremental encoders are typically less expensive than absolute models, though the price difference is shrinking. However, a complete cost analysis must consider more than just the encoder purchase price.
Initial System Costs
Incremental encoders offer lower entry costs due to their simpler construction and established manufacturing processes. They use simple hardware, are easy to use, and can utilize various signal types including HTL, TTL, and 1Vpp sine/cosine waves. This simplicity translates to reduced controller costs and easier integration.
Absolute encoders require more sophisticated interface electronics and data processing capabilities, but they eliminate the need for limit switches, home sensors, and complex homing routines. When factoring in these system-level savings, the total cost difference often narrows considerably.
Operational and Maintenance Costs
The true economic advantage of absolute encoders often emerges during operation. Systems that can restart immediately after power interruptions reduce downtime costs, while the elimination of mechanical homing reduces wear on mechanical components. In high-reliability applications, these operational benefits can justify the higher initial investment within months.
Incremental systems may require periodic re-homing to maintain accuracy, especially in demanding environments. This maintenance overhead, while minimal, adds to the total cost of ownership over the system’s lifetime.
Application-Specific Selection Criteria
Choosing between absolute and incremental encoders requires matching technology capabilities to application requirements.
When Incremental Encoders Excel
Incremental encoders remain the preferred choice for applications prioritizing cost-effectiveness and high-speed operation. They’re ideal for:
- Velocity control applications where position isn’t critical
- High-speed spindle monitoring
- Simple point-to-point positioning
- Budget-conscious projects with relaxed startup time requirements
- Applications with reliable power supplies and minimal electrical noise
When Absolute Encoders Are Essential
If you are working on a design where rotating to find a home position after a power cycle isn’t ideal or possible, an absolute encoder is the right tool for the job. Critical applications include:
- Safety-critical systems requiring immediate position knowledge
- Multi-turn applications tracking multiple shaft revolutions
- Remote or unmanned installations where homing isn’t feasible
- Systems with frequent power cycling
- Applications where losing position data creates safety hazards or production losses
Emerging Technologies and Future Considerations
The encoder landscape continues evolving with advancing digital technologies. Wireless absolute encoders are eliminating installation complexity in rotating machinery, while improved signal processing is enhancing both encoder types’ noise immunity and resolution capabilities.
Smart encoders with embedded diagnostics are providing predictive maintenance capabilities, allowing systems to anticipate failures before they occur. These features, once exclusive to high-end absolute units, are migrating to incremental encoders as well.
Additionally, the integration of encoders with Industrial Internet of Things (IIoT) platforms is creating new opportunities for system optimization and remote monitoring, regardless of encoder type.
Making the Strategic Decision
The choice between absolute and incremental rotary encoders ultimately depends on balancing performance requirements against economic constraints. For applications where the ability to maintain position knowledge through power cycles is critical, absolute encoders provide clear advantages despite their higher initial cost. However, for applications focused on speed control or simple positioning with reliable power supplies, incremental encoders offer an economical solution.
:
